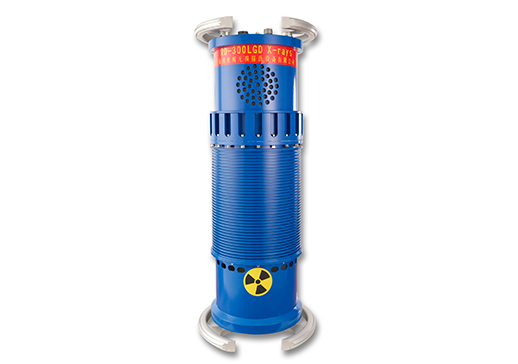

LG series RD-300

Super high energy X-ray machine

Technical Parameter Technical Features Applied Engineering

RD300D

Model	Input Power Capacity KVA	Tube Voltage KVP	X Ray Tube		X Ray Generator			Controller
			X Ray Tube		Size	weight	Max penetration (mm)
			Focal Size (mm)	Angle	Size	weight	Max penetration (mm)
RD-1805	4	80-180KV	0.9*0.9	40+5°	Dia116*510mm	8.9	32	4.8KG
RD-2305	5	100-230KV	0.9*0.9	40+5°	Dia280*600mm	12	32	5KG
RD-2805	5	150-280KV	2.0*2.0	40+5°	Dia280*600mm	26	45	9kg
RD-300LG	6	150-300KV	2.6*2.6	40+5°	Dia270*810	45	80	1.5KG
RD-3005	6	170-300KV		40+5°	Dia260*600	28kg	52	5kg
RD-3505	7	170-350KV		40+5°	Dia320*650	34kg	55	9kg
RD-3605	7	170-360KV	2.5	40+5°	Dia320*650	34kg	60	9kg
RD-G300	6	30-300KV	2.5*2.5	40+5°	Dia305*880	30	55	11

Technical Specification

Item	Technical Data
AC Power	AC 220V+/-10%, 50Hz
Output	Tube current	5mA
Output	High voltage transfer input voltage fluctuation	+/- 1%

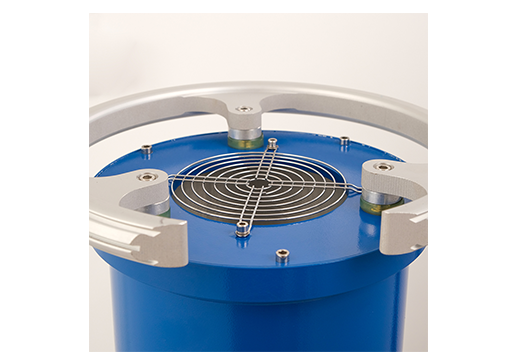

X Ray Generator	Cooling method	Force air cooling
	Insulated method	SF6 gas insulation
	Soft working pressure (20℃）	0.35~0.45Mpa
Working Condition	Temperature	-30-40℃
	Relative Humidity	＜85%
	Altitude	1000m
Max Penetration Condition	Steel	A3(mm)
	Focal length	600m
	Exposure	≤30mAmin
	Film	Double-sided lead foil sensitization
	Darkroom treatment	20+/-2℃， 5min
	Optic density	D≥2.0

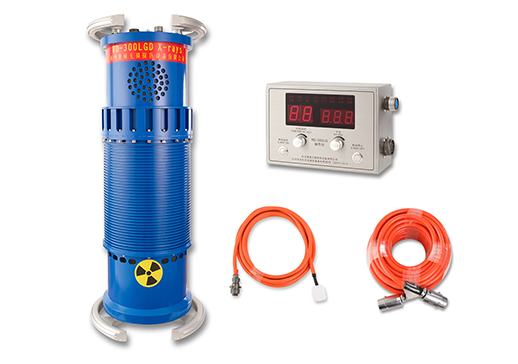

The controller	Size
	Weight
	Timing error	5min +/- 10%
Working Rate	Working & rest 2:1 working rate, the max exposure time 9.5min

Since portable radiographs have been used in industrial flaw detection, almost ALL THE world's STANDARDS HAVE had a 1:1 WORKING mode, in which the time worked equals the time needed to rest. The reason is that the ray tube is hot and needs rest buffer.

Weway HAS DEVELOPED AN UNINTERRUPTED WORKING MODE THAT REQUIRES A MAXIMUM SUPPORT THAT IS REDUCED heat or ACCELERATED heat dissipation. This is the biggest feature of the model. To solve the heat dissipation is not only to increase the radiator this simple method, the key is to reduce the useless power consumption of the ray tube. The control circuit and high voltage generator of this product play a decisive role.

The application of patent technology, the controller and high voltage generator together. The biggest benefit is energy saving and consumption reduction. The efficiency of high voltage pulse transformers is improved, and the effect of feedback is to reduce power consumption.

★ Zhongwei - Guiyang Jiangjin compressor station anti-transmission reconstruction project

★E 'Ancang Gas pipeline Project

★The second line West-East gas pipeline inspection project

★ China-Russia pipeline
